Polish(Wood)

We have various kinds of machines from heavy duty grinding to precise polishing for below uses

SWF series

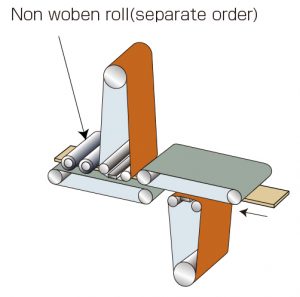

Upper & lower surface sanding belt sander SWF series

Shorten to 1 process for upper & lower sanding together.

Suitable for line production because of plate fixed type.



■Use/ Wood grain sanding for upper & lower surface



D type head: Large diameter grinding roll

C type head: Air cushion pad & grinding roll

■Specification
SWF20 (DD, DC, CC)
SWF30 (DD, DC, CC)
SWF40 (DD, DC, CC)
Max. workable size(W x t)
200x150mm
300x150mm
400x150mm
Min. workable length
270mm
Sanding speed
20m/sec
Feeding speed
50Hz=5.4~19m/min, 60Hz=6.4~23n/min
Sanding belt size
(W x Inner length)
230x1600mm
330x1600mm
430x1600mm
Working table height
800mm
