BOTH SIDE SANDER

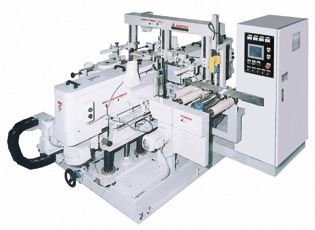

BOTH SIDE SANDER　SWS2515CF

●Enquiry

Roll copying mechanism is equipped at sanding head
Even with curvature or thickness variations on work-piece, uniform sanding is available

■SPECIFICATIONS		SWS2515CF
Work-piece size	Width（Min.～Max.）	15～250mm
	Thickness（Min.～Max.）	15～150mm
	Min. length	800mm
Sanding speed		3～20m/sec
Feeding speed		5～25m/min
Sanding belt size(Width x Inner length）		180x2510mm
Non-woven roll size(Outer dia. x Width）		φ250x155mm
Work height（incl. base plate）		850mm

BOTH SIDE SANDER　 SWS12E

●Enquiry

Best suited for symmetrical sanding of side faces of upper surface decorated material

Uniform sanding is achieved thanks to roll copying mechanism
With automatic stroke adjustment, sanding belt is efficiently used

■SPECIFICATIONS		SWS12E
Work-piece size	Width（Min.～Max.）	45～300mm
	Thickness（Max.）	120mm
	Min. length	800mm
Sanding speed		3～20m/sec(60Hz)
Feeding speed		5～25m/min(60Hz)
Sanding belt size(Width x Inner length）		150x2510mm
Work height（incl. base plate）		850mm
