Frame up/down structure is suitable for production line

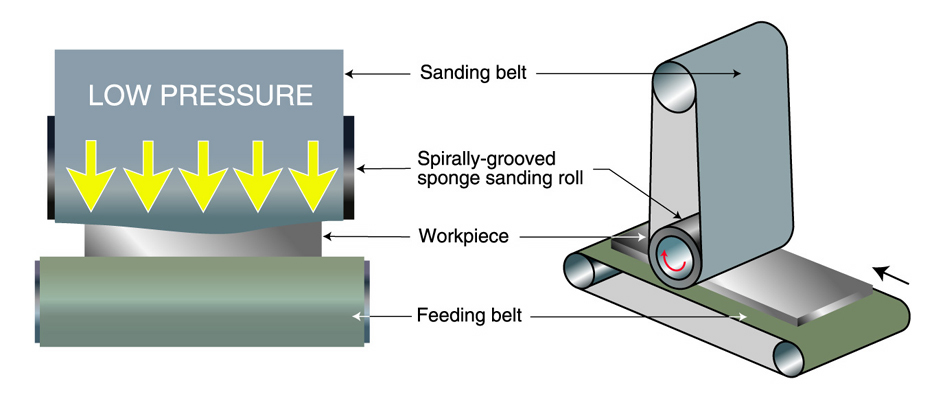

Special sanding roll　
Uniform sanding by excellent compliance with work-piece

Features

Special sanding roll. Fewer damages on work-piece due to low pressure by sanding roll.
Brilliant grinding surface is achieved.　

Distorted, curved or twisted surface can be smoothly finished.

Sanding speed is adjustable by inverter depending on customer application.

Distance between sanding belt surface and work-piece surface is always monitored by digital thickness gage.
Work-piece thickness is always monitored while grinding.? Positioning of sanding roll is adjusted by
inputting targeted thickness.

High powered paper cleaning device cleans sanding belt uniformly. (standard accessory)

Since sanding roll height can be adjusted by swing by ratchet bar control, thus fine tuning of sanding or
adjustment of sanding belt thickness error can be easily compensated. (STTE100, STTE130)
Safety cover is equipped at the front side of the table. Standard automatic sanding belt braking system stops
the sanding belt when abnormal position, breakage and air pressure down are detected.
