Amitec has performed pioneering work in the field of lengthwise
veneer slicing machines with their supporting equipment for
over
45 years and is now enjoying high reputation from customers
and
a big market share not
only in Japan, but also overseas, making
a great contribution to veneer manufacturers for excellent
veneer
quality and its high yield.

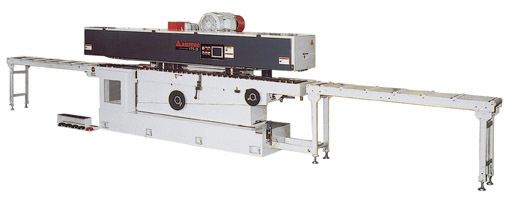

Newly-developed lengthwise veneer
slicer
Model VTS25 for thick veneer
・Available for slicing veneer thickness : 0.3mm -13mm
Main features
:

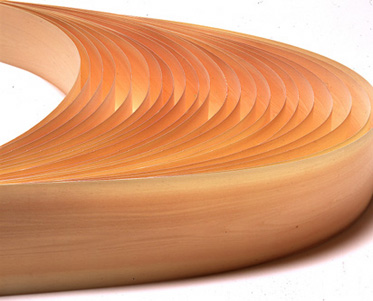

Slicing along with the grain to obtain the
high quality sliced
veneer surface
No limitation to the flitch length, thanks to “edge to edge”
detection system
Equipped with stainless steel feed rollers, ensuring the
reduction of feeding friction to make smooth feeding.
Equipped with a thick stainless steel plate on the bed part
to precise the
flatness, result in precision slicing.
Graphic operation panel |
|

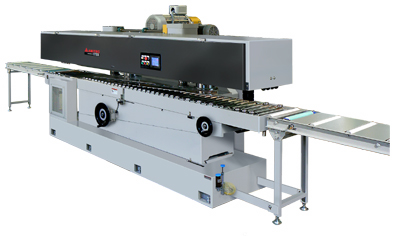

VTS Series Lengthwise Slicer for thick veneer |
Slicing
along with the grain to obtain the high quality sliced veneer
surface
No limitation to the flitch length, thanks to edge to edge
detection system
Equipped with stainless steel feed rollers, ensuring the reduction
of feeding
friction to make smooth feeding.
Equipped with a thick stainless steel plate on the bed part
to precise the
flatness, result in precision slicing.
Digital controls for easy setting of veneer thickness
Available for automatic flitch reciprocation feed and one-way
feed
(Merry-Go-Round System)
|
|
|
|
| Specifications
|
VTS25 |
VTS35 |
| Max. workable size : (WxT)
|
250x250mm |
350x350mm |
| Max. stroke
|
300mm |
350mm |
| Max. thickness of slicing |
13mm (depending on wood species
and flitch preparation) |
| Knife length
|
1500mm |
2060mm |
| Feeding speed |
30～80m/min. (inverter control) |
|
|

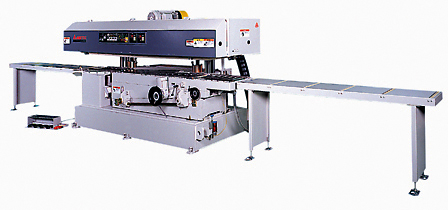

VT Series Lengthwise Slicer for thin veneer |
 VT25S ●Enquiry
|
| Model |
VT14S |
VT20S |
VT25S |
VT35S |
| Max. flitch size |
140x200mm |
200x200mm |
250x250mm |
350x250mm |
| Range of veneer thickness |
0.3～2mm |
| Feed speed .( Inverter control ) |
50, 60, 70, 80m/min |
40, 50, 60, 72m/min |
| Knife length |
720mm |
960mm |
1180mm |
1500mm |
| Feeding motor |
7.5kW |
7.5kW |
11kW |
15 kW |
| Machine weight |
2300kg |
3000kg |
5400kg |
10000kg |
|
|

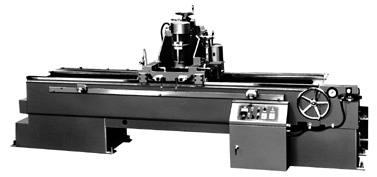

VGW Series Veneer knife grinder |
・Constructed with precise bed and stable head column
・Provided with magnetic chuck device for stable knife holding
in place.

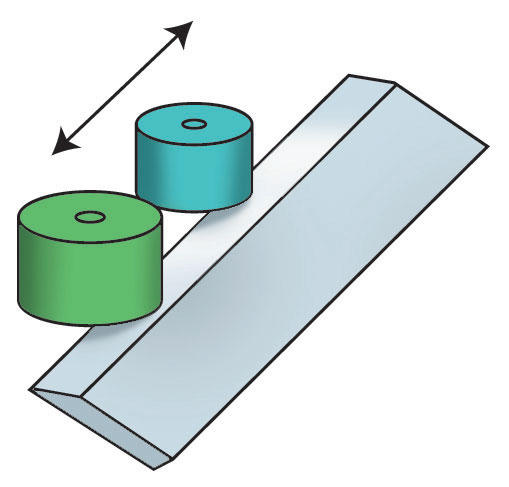

・Equipped with lapping wheel device
・Coolant device with big capacity
|
|
|
| Specifications |
VGW125 |
VGW155 |
VGW200 |
| Grindable knife length |
1250mm |
1550mm |
2000mm |
| Magnetic chuck turning angle |
90° - 0 -90 |
| Wheel carriage traveling speed |
4.5～20m/min. (50Hz), 5-23m/min.
(60Hz) |
| Automatic wheel grinding
amount |
0.01-0.1mm |
|
|

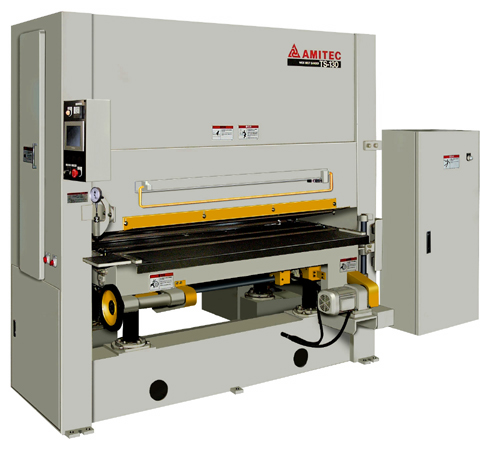

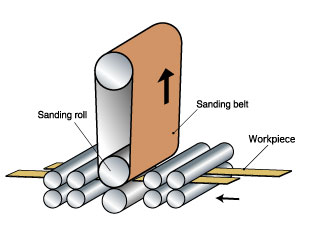

TS Series Wide
Belt Sander (for processing lamella) |
|
|
 |
Variable sanding speed to select the
best speed for every condition.
・Automatic brake system for your safety operation. Sanding operation
automatic brake
system makes all functions stop in a few seconds for your safety
under the following condition:-
・Breakage and abnormal tracking of sanding belt
・Pushing of “EMERGENCY STOP” button ・Shortage of air pressure
・Main power off
・Digital thickness gauge for easy adjustment.
・Variable feeding speed control for silky smooth feeding.
・Sanding belt tracking (oscillation) by photo sensor to reduce
the air consumption.
・Heavy duty brake shoe at front and rear of sanding drum roller
to prevent oversanding.
・Sanding belt cleaning system (Air Jet Cleaner) is equipped
as standard.
|
|
| Specifications: |
TS40D |
TS65D |
| Max.workable size (WxT) |
400x30mm |
650x30mm |
| Min.workable thickness |
0.2mm |
| Min.workable thickness |
300mm |
| Sanding speed |
3～20m/sec |
| Variable feeding speed |
50Hz=6～19m/min, 60Hz=7～22m/min |
| Specifications: |
TS100D |
TS130D |
| Max.workable size (WxT) |
1000x30mm |
1300x30mm |
| Min.workable thickness |
0.2mm |
| Min.workable thickness |
300mm |
| Sanding speed |
3～20m/sec |
| Variable feeding speed |
50Hz=6～19m/min, 60Hz=7～22m/min |
|
|

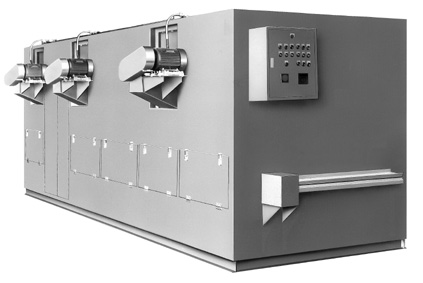

TID Series Veneer roller dryer |
・Single deck, Roll feed type cross hot air circulation system
with fans
and jet boxes
・Equipped with stainless-made feed rolls, which ensures to
prevent a
veneer from stains on its surface.
・Selectable heating medium on your request (Gas, oil, steam)
|
|
|
| Specifications |
TID06 |
TID08 |
| Workable width |
1000mm |
| Working height |
700mm |
| Feeding speed |
2 - 8m/min. |
| Burner capacity |
MM05 6～10L/Hx1 |
MM05 8～13L/Hx1 |
| Heating source |
ON, OFF Auto temperature control type Kerosene-Burner |
|
|
