Woodworking
|
| General sanding |
SGRH Series Wide belt sander |
Single Wide Belt Sander SGRH130CV
●Enquiry
Double Wide Belt Sander SGRH130DC
●Enquiry
|
WIDE BELT SANDER SGRH Series(Single, Double, Triple)
Utilized from Woodworking to Coated Grinding
Suitable for One Pass Line on account of the
table stabilization
| Specifications |
SGRH100
(Single) |
SGRH100
(Double) |
SGRH100
(Triple) |
| Max.
workable size (WxT) |
1000×150mm |
| Min. workable length |
460mm |
| Sanding speed |
D Type, C Type : 20m/set,
CV Type, FV Type : 3～20m /set(Inveter changeable) |
| Feeding speed |
6～40m/min(Inveter Changeable) |
|
Sanding belt size(W×Inner L) |
1030x2515mm |
| Workable Table Length |
850mm |
| Specifications |
SGR130
(Single) |
SGR130
(Double) |
SGR130
(Triple) |
| Max.
workable size (WxT) |
1300×150mm |
| Min. workable length |
460mm |
| Sanding speed |
D Type, C Type : 20m/set,
CV Type, FV Type : 3～20m /set(Inveter changeable) |
| Feeding speed |
6-40m/min（Inverter Controlled） |
|
Sanding belt size(W×Inner L) |
1330x1900mm |
| Workable Table Length |
850mm |
|
| SGR Series Wide belt sander |
Single Wide Belt
Sander SGR130CV
●Enquiry

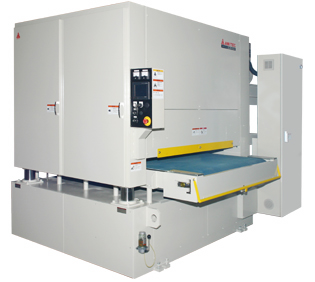

Double Wide Belt Sander SGR130DC
●Enquiry
|
WIDE BELT SANDER SGR Series(Single, Double, Triple)
Utilized from Woodworking to Coated Grinding
Suitable for One Pass Line on account of the table stabilization
|
| Specifications |
SGR100
(Single) |
SGR100
(Double) |
SGR100
(Triple) |
| Max.
workable size (WxT) |
1000×150mm |
| Min.
workable length |
460mm |
| Sanding speed |
D Type, C Type : 20m/set,
CV Type : 3～20m /set(Inveter changeable) |
| Feeding
speed |
6～40m/min(Inveter Changeable) |
|
Sanding belt size(W×Inner L) |
1030x1900mm |
|
850mm |
| Workable Table Length |
| Specifications |
SGR130
(Single) |
SGR130
(Double) |
SGR130
(Triple) |
| Max.
workable size :(WxT) |
1300×150mm |
| Min.
workable length |
460mm |
| Sanding speed |
D Type, C Type : 20m/set,
CV Type : 3～20m /set(Inveter changeable) |
| Feeding
speed |
6～40m/min(Inveter Changeable) |
|
Sanding belt size(W×Inner L) |
1330x1900mm |
| Workable Table Length |
850mm |
|
|
|
