Suitable for thickness control of carbon, resin and
other materials.
Thickness accuracy error: 0.05 mm
(with 1000x 1000 mm plate
Features

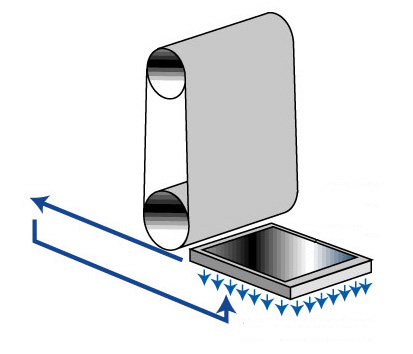

Work-piece is stably fixed on the table by vacuum fit,
and grinding is done while table is transferred.
Table up/down is by ball screws and thickness accuracy
error is 0.05 mm with 1000 x 1000 mm plate.
●Enquiry
| Specifications |

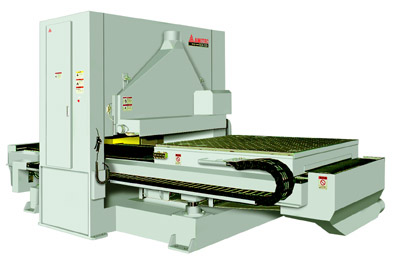

Model NSX130E |
| Max. workable width
|
1200mm |
| Max. workable length |
1500mm |
| Workable thickness |
3-50mm |
| Grinding speed |
20m/sec. |
| Feed table
traveling speed |
4 -12m/min. |
|
