| Woodworking |
RRA Series Running saw |
Computerized control
full auto-matic running saw RRA250
Simple Type Runningl Saw
High Endurancy and Rigidity by best quality flame
Proficient Cost Performance
| Specifications |
RRA250-245 |
| Cutting Thickness |
80mm |
Cutting
Window
(Saw movable span) |
140～2500mm |
Cutting
Length
(Scale movable span) |
2450mm |
Main Axis
Round Saw
Diameter, rpm ※1 |
φ355mm
50Hz : 3300rpm
60Hz : 4000rpm |
Sub Round
Saw
Diameter, rpm |
φ205mm
50Hz : 3600rpm
60Hz : 4300rpm
(Remove the ruler saw, when not in use) |
| Cut feeding
speed |
Max. 40m/min (Return
Max. 40m/min) |
| Ruler traveling speed |
Max. 20m/min(Return Max.
20m/min) |
| Workable Height |
880mm |
| ※1 1 axis or 2 axis
are sellected. |
|
|
|
| Woodworking |

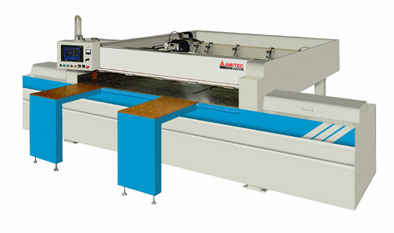

RCV Series Running saw |
|
Computerized control full auto-matic running
saw RCV Series
Proficiently Suitable Software ACOS is applied.(Standard
Option)
Maximum Cutting Thichness is sellected from 80mm and 100mm.
Main Axis Saw Diameter & Main Axis Motor are sellected on
purpose.
Automatic Lubrication Device standarized.
| Specifications |
RCV250-245 |
| Cutting Thickness |
80mm or 100mm |
Cutting Window
(Saw movable span) |
2500mm |
Cutting Length
(Scale movable span) |
2450mm |
Main Axis Round Saw
Diameter, rpm ※1 |
φ355mm or φ405mm
50Hz : 3100rpm
60Hz : 3700rpm |
Sub Round Saw
Diameter, rpm |
φ205mm
50Hz : 3300rpm
60Hz : 4000rpm |
| Cutting speed |
Max. 40m/min (Return
Max. 40m/min) |
| Ruler traveling speed |
Max. 25m/min(Return Max.
50m/min) |
| Workable Height |
950mm |
|
|
|
|
Woodworking |
L

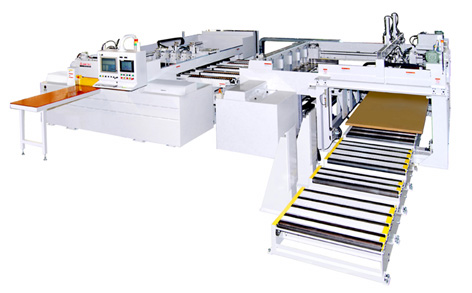

Type Panel Running Saw 48 Type |
|
RCV Series
L Type Panel Running Saw 48 Type
(Compact Specification with Feeder)
High
Precision / High Rigidity
・Operational just iby one operater.
・Suitable from much order to spot order
・Set up with small space
・Proficient High Speed Cutting, High Productivity
| Mian Specification |
| Feedable Plate |
| Original
Plate |
Thickness |
15～22mm |
|
Width |
600～1250mm |
|
Length |
1200～2450mm |
| Original Plate Height |
Max. 600mm(including
plate) |
| Cutting
Work Width |
Min. 127mm each |
| Max. Work Weight |
1286 Kg |
| Machine Size |
9100 x 7615mm |
|
|
|
| Woodworking |

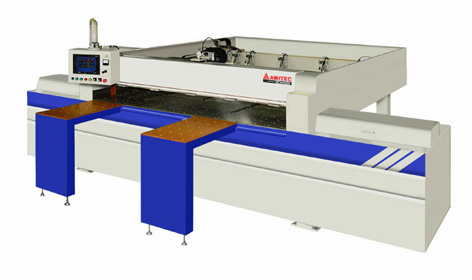

RCVH Series Running saw |
・Computerized control
full auto-matic running saw RCVH Series
・Saw feeding(Return Max. 120m/min / Work efficiency Up
・Maximum Cutting Thichness is sellected from 80mm and 100mm.
・Main Axis Saw Diameter & Main Axis Motor are sellected on purpose.
・Automatic Lubrication Device standarized.
| Specifications |
RCVH250-245 |
| Cutting Thickness |
80mm or 100mm |
Cutting Window
(Saw movable span) |
2500mm |
Cutting Length
(Scale movable span) |
2450mm |
Main Axis Round Saw
Diameter, rpm ※1 |
φ355mm or φ405mm
50Hz : 3100rpm
60Hz : 3700rpm |
Sub Round Saw
Diameter, rpm |
φ205mm
50Hz : 3300rpm
60Hz : 4000rpm |
| Cutting speed |
Max. 40m/min (Return
Max. 120m/min) |
| Ruler traveling speed |
Max. 25m/min(Return Max.
90m/min) |
| Workable Height |
950mm |
|
|
|
|
Woodworking |

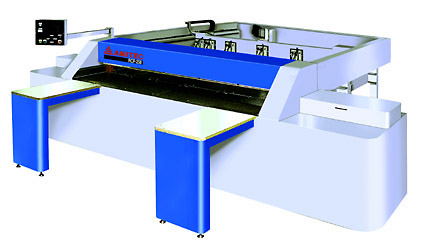

RCP Series Running saw |
・Computerized full automatic system
・Precise cutting accuracy
・Equipped with scoring saw
・Waste-less high productivity
・Simple operation by color graphic operation panel.
| Specifications |
RCP250-245 |
RCP310-245 |
| Max. available size
(TxW) |
80mm x 2500mm |
80mm x 3100mm |
| Ruler traveling distance |
2450mm |
| Cutting
speed |
Max. 40m/min. |
| Ruler traveling speed |
Max. 18m/min. |
|
|
|
| Aluminum
plate cutting |
RRUC Series Full automatic type running saw |
|
|
・Ideal suited for cutting Aiuminum
plate with high accuracy
-
Max. 100mm thick workpiece available
・Equipped with air floating type table
| Specifications |
RRUC310-310 |
| Max. workable size
(T x L) |
100mm x 3100mm |
| Ruler traveling stroke |
3100mm |
| Saw carriage traveling
speed |
1-15m/min. |
| Ruler traveling speed |
Max. 15m/min. |
|
|
|
