@Metal Surface Grinding Machine (Wet system)

Metal Surface Grinding Machine
Precise grinding of metal / non-metal surface without dust scattering
ABRASIVE BELT GRINDER (WET SYSTEM) SS SERIES

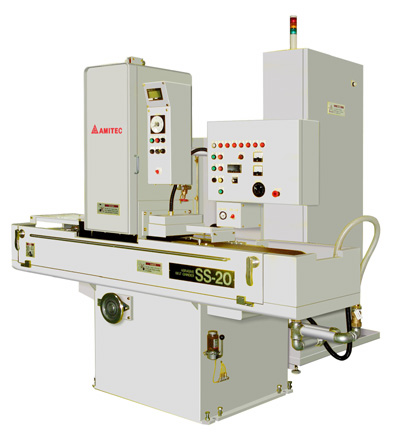

SS201 (Single head type)@
Wet type belt grinder

Enquiry



Wide range of purposes can be done such as de-burring, surface control and thickness control.
Ideal for pressed components made of magnetic materials.
No scattering of grinding dusts and less heat affection thanks to wet type system.


Specifications (Single head)
SS201
SS251
SS301
Max. workable size (vxT)
190x99mm@@@
250x99mm@@@
300x99mm
Min. workable length
Magnet chuck can hold small/short work-piece
(for magnetic materials)
Feeding speed
50Hz:2.5`10m/min, 60Hz:3`12m/min
Grinding speed
1200m/min
Grinding direction
UP/DOWN

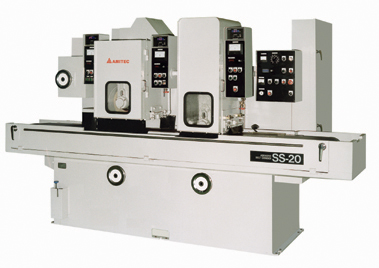

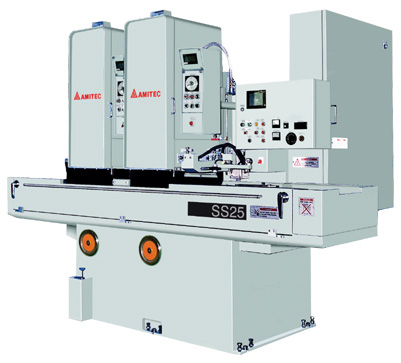

SS252 (Two head type)
@Wet type belt grinder
Enquiry


Compared to single head type, high volume grinding, rough grinding or finish
grinding are completed in one pass by attaching grinding belts of different grit #.

Specifications (Tow head)j
SS202
SS252
SS302
Max. workable size (WxT)
190x99mm
250x99mm
300x99mm
Min. workable length
Magnet chuck can hold small/short work-piece
(for magnetic materials)
Feeding speed
50Hz:2.5`10m/min, 60Hz:3`12m/min
Grinding speed
1200m/min
Grinding direction
UP/DOWN


SS253 (Three head type)
@Wet type belt grinder
Enquiry



Suitable for applications of heavy-duty grinding and more stable finishing
is required

Specifications (Three head)
SS203
SS253
SS303
Max. workable size (WxT)
190x99mm@ @
250x99mm@@
300x99mm
Min. workable length
Magnet chuck can hold small/short work-piece
(for magnetic materials)
Feeding speed
50Hz:2.5`10m/min, 60Hz:3`12m/min
Grinding speed
1200m/min
Grinding direction
UP/DOWN


SS201A (Sanding head + Grinding wheel)

Enquiry



Belt grinding head and grinding wheel are combined in wet system.
Wide variety of grinding wheels is available and various types of grinding can be done.
Best suitable when high quality surface roughness is required.

Specifications
SS201A
Max. workable size (WxT)
190x99mm
Min. workable length Magnet chuck can hold small/short work-piece
(for magnetic materials)
Feeding speed
50Hz:2.5`10m/min, 60Hz:3`12m/min
Grinding speed
1200m/min



-

@Wet-type Abrasive Belt Grainder with Planetary Brush SS201UB


SS201UB : 1 Belt Grinding Head + 1 Planetary Brush Head
SS201UBB : 1 Belt Grinding Head + 2 Planetary Brush Heads

Belt grinding head in combination with Planetary brush achives high quality
cutting edge finishing of workpiece.
The perfect combination for deburring, such as, Grinding belt head which
is suitable for first burr removal (after FB),
and Planetary brush head which is effective for secondary burr, improves
the production quality, as well as reducing the
takt time and running costs.
EEnergy-saving motor for Planetary brush head
EGrooming of brush is not necessary since the brush @@
wears evenly Please contact us for further information. Your test
samples are welcomed!!@

@@

SS201UB@Enquiry
@

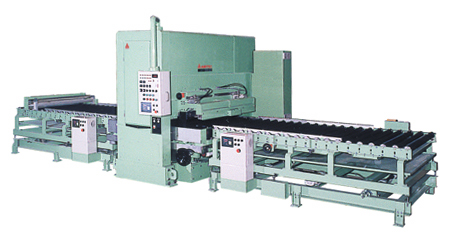

@SS1271 ABRASIVE BELT GRINDER (Wet system)


Features
Suitable for grinding/polishing wide stainless steel or metal plates.
Wet type grinding system
Max. workable width is up to 1270mm (50 inches).@
Return grinding and high volume grinding can be made with addition of work-piece return device.
Best fit for stainless steel plate


Specifications
SSR1271
Max. workable width 1270
Max. workable thickness 0.5`30mm
Min. workable length 600`2500mm
Grinding speed 1300m/min
Feeding speed 4~15m/min

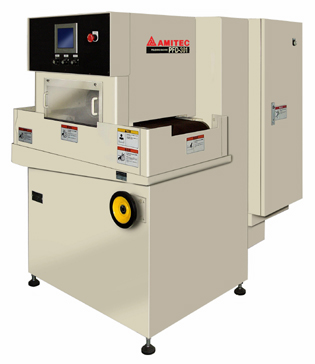

@PFD SERIES: PFD WHEEL GRINDING MACHINE


Suitable for de-burring punched steel plates and finishing their surfaces.
Wheel type grinding tools (wet grinding type)
Grinding wheel oscillation
Enquiry

Specifications
PFD301 (1 head)
PFD302 (2 heads)
Max. workable size (WxT)
280mmx1-6.5mm
280mmx1-6.5mm
Min. workable length
180mm
180mm
Feeding speed
2-8m/min.
2-8m/min.


@SSV Series Abrasive belt grinder

EIdeal suited for grinding and polishing a copper plate
EWet grinding type. Fresh water available thanks of stainless-made major parts

Enquiry
Specifications
SSV412A
(2-Head type)
SSV611A
(1-Head type)
Max. workable size (WxT)
410mmx3mm
610mm L
Min. workable size (LxT)
89mmx0.15mm
180mmx0.5mm
Grinding speed
200-500m/min.
(inverter control)
400m/min.(50Hz)
480m/min.(60Hz)
Feeding speed
1-5m/min.
1- 5m/min.

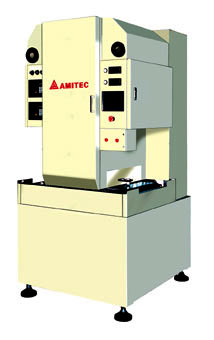

Flat Belt Grinder SSV412 (Wet system)


Wet type Grinder for Printed Circuit Board (Two heads)
Enquiry



Thin printed circuit board can stably be ground and polished.
Minimum working length is 89 mm (3.5 inches).
No additional jigs for short work-pieces.
Recommended for heavier grinding than single head

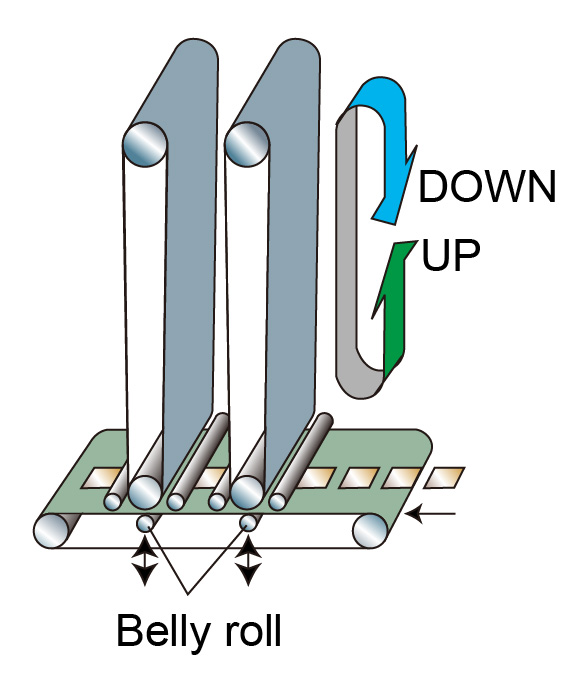

Up/down grindings are selectable, suitable for removing burrs on the hole edge.


Specifications
SSV412A (2-Head type)
Max. workable size (W x T) 410mmx3mm
Min. workable size (L x T)

89mmx0.15mm

Grinding speed 200-500m/min.
(inverter control)
Feeding speed
1-5m/min.

@

@

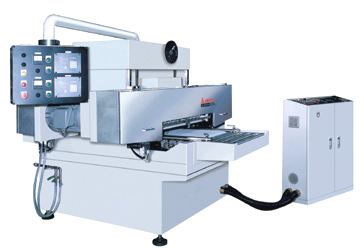

Cross Belt Sander CS Series (Wet system)


CS61SiWet)j@
Enquiry



CS61WiWetj@Enquiry

Flat grinding is available by removing burrs while maintaining sharp edge of the hole.Suitable for resin PCB such as IVH
Flat pads are pressed by air pad tube on the back-side of grinding belt which enables grinding belt to comply with work-piece. Separated pads improve compliance with work-piece.
Two heads type have different grinding directions that make a better and smooth surface.

Specifications

CS61S (Single headj
CS61W (Two headj
Work-piece
Thickness
0.2`5mm
Width
250`610mm
Length
240`610mm
Grinding speed
400`1200m/min
Feeding speed
0.5`2m/min

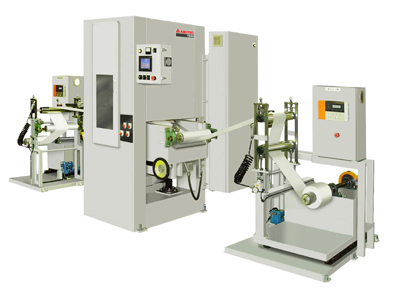

@TS series Resin thickness control
Specifications:
TS40D
TS65D
Max.workable size (WxT)
400x30mm
650x30mm
Min.workable thickness
0.2mm
Min.workable thickness
300mm
Sanding speed
3`20m/sec
Variable feeding speed
50Hz=6`19m/min, 60Hz=7`22m/min
Specifications:
TS100D
TS130D
Max.workable size (WxT)
1000x30mm
1300x30mm
Min.workable thickness
0.2mm
Min.workable thickness
300mm
Sanding speed
3`20m/sec
Variable feeding speed
50Hz=6`19m/min, 60Hz=7`22m/min

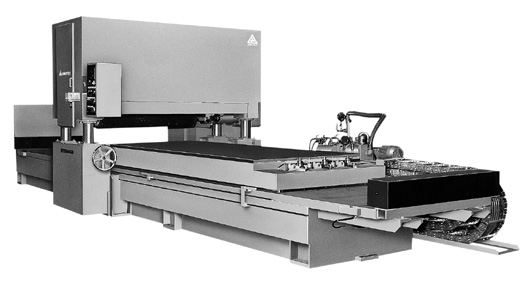

 Model SSR1311NS : Flat grinding machine
EAvailable for grinding and polishing of wide stainless steel plate
EFeed table reciprocation type
EHair line finish is also available.
ESemi-wet grinding type.

Enquiry

Specifications
SSR1311NS
Max. workable size (WxTxL)
1310mmx0.8-8mmx3050mm
Min. workable size (WxL)
350mmx350mm
Grinding speed
1500m/min.
Feeding speed
4-15 m/min.
