Grinding
Ceramics Grinding
Diamond Roll Grinder

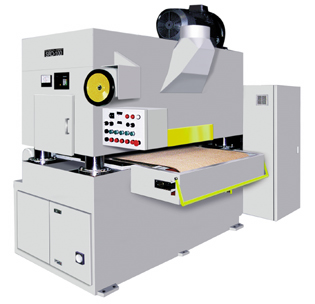

Diamond Roll Grinder SRD100DV

œEnquiry

Suitable for thickness control of tough grinding materials such as ceramics and construction materials
Feeding speed slow down device
Dry grinding system with diamond roll
Best fit to tough grinding material such as concrete
Tool life is greatly extended compared to grinding belt.
Running cost may be greatly reduced depending on materials.
Grinding load can be monitored and feeding speed can be automatically slowed when overload is detected.
With taper shank, diamond roll replacement is easy and simple.

Specifications
SRD100DV
Max. workable width
1000mm
Min. workable length
550mm
Grinding speed
10`20m/sec iInverter controlj
Feeding speed
5`24m/min
Diamond roll ƒΣ
ƒΣ240
Pass line height
F.L+935mm

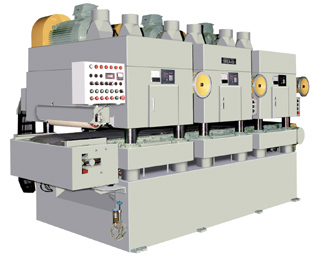

Diamond Roll Grinder SRDA65DDDL (Three head type)


@@@@@
@@@@@@@@@@@@@@@@@@@@@@@@@@@Diamond rol
@@@

Equipped with three diamond roll heads and heavy duty
grinding is available.
Reducing grit number from No. 1 head to No. 3 head, smooth
finish is achieved in one pass.
Each headfs position can be adjusted separately, adjusting grinding depth is easy and rigidity is maintained as well.


œEnquiry

Specifications.
SRDA65DDDL
Max. workable size (W x T)
650x160mm
Min. workable length
1000mm
Grinding speed
1500m/min
Feeding speed
3`15m/min
Diamond roll ƒΣ
ƒΣ240

@Diamond Roll Grinder SRD301, SRD451

Electroplated diamond roll gives stable grinding accuracy
for a long time thanks to its extended long life.
Diamond tool reduces wear and maintains stable accuracy.

Easy replacement of diamond roll. No need to disassemble driving unit.
Grinding tool is easily replaced with taper shank.

Diamond roll is not suitable for metal grinding



œEnquiry

Specifications SRD301 SRD451
Max. workable size (W x T) 300mmx6mm 450mmx6mm
Min. workable length
160mm
Surface speed of diamond roll
1200m/min.
Grinding speed
4.0`10.5m/min.
Diamond roll size (diameterj
100mm                      125mm
