Polish（Metal・Non-metal）
Grind with grinding belt.We can suggest wet or dry types of machine according to your processing purpose.
STTE series (Dry type)
Soft wide sander STTE series (Dry type)
Soft sanding
■Feature

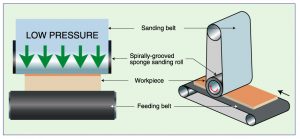

- Use special sanding roll. It can make beautiful skin by the low pressure to the WP.
- It can also make beautiful skin for strained, curved & twisted WP.
- Sanding speed is changable because of inverter variable speed.
- Digital display device for WP thickness.Always displays the gap between sanding and feeding surface, even if while sanding. Positioning can be set at once, by inputting required size.
- Paper cleaning device is powerful and makes equally clean.(Standard device)
- Sanding roll can be tilted by ratchet handle, easily adjust the sanding and belt thickness error.(STTE100,130)
- By setting safety bar in front of the table, automatic brakefor sanding belt (Standard device) works when the belt deviation error, damaged and low air pressure.
■Use／
| ■Specification |
STTE40DV
|
STTE65DV
|
STTE75DV
|
STTE100DV
|
STTE130DV
|
|
|---|---|---|---|---|---|---|
| Max. workable size (Wxt) |
400×150mm
|
650x150mm
|
750x150mm
|
1000×150mm
|
1300x150mm
|
|
| Min.workable length
(Pressure roll pitch) |
210mm
|
210mm
|
255mm
|
280mm
|
280mm
|
|
| Sanding speed |
1.5～10m/sec
|
|||||
| Feeding speed |
6～25m/min
|
|||||
| Sanding belt size
(W x Inner length) |
430x1600mm
|
680x1600mm
|
780x1600mm
|
430x1900mm
|
1330x1900mm
|
|
| Work table height (Plate fixed) |
810mm |
|||||
