Polish（Metal・Non-metal）
Grind with grinding belt.We can suggest wet or dry types of machine according to your processing purpose.
Flat belt grinder SSV412 (Wet type)
Flat belt grinder SSV412 (Wet type)
Wet type grinder with 2 heads.
Available for stable grinding for thin PCB.
Available to process 89mm(3.5in.) at the shortest.
Does not need the jig for small work-piece.
Recommend this machine in case of insufficient grinding with 1 head.
Available to process small work-piece without jig, because min. workable length is 3.5 inch.

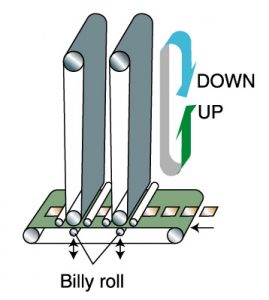

Efficient for hole burrs, because grinding direction can be selected UP and DOWN.
■Use／
| ■Specification |
SSV412
|
|---|---|
| Max. workable size (W x t) |
410x3mm
|
| Min. workable size ( t x L) |
0.15x89mm |
| Grinding speed |
200～500m/min(inverter variable speed）
|
| Feeding speed |
1～5m/min
|
