Polish(Wood)

We have various kinds of machines from heavy duty grinding to precise polishing for below uses

SET series

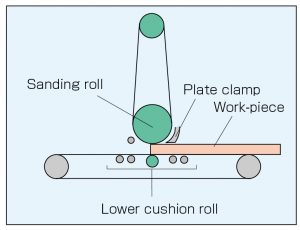

<For floor> Wide belt sander (Plate movable ) (Top surface fixed type)

●Constant sanding on upper surface is available, because working table up & down according to the work-piece shape.

●Soft sanding is available, because extremely soft rubber for sanding roll is used.

●Because feeding lower roll is air cushion type, soft sanding is available for a wide range of applications.



■Use/ From wood grain to painted surface of floor materials

■Specification
SET40DV
SET65DV
SET100DV
Max. workable size (W x t)
400×150mm
650x150mm
1000x150mm
Min. workable length
(Pusher roll pitch)
400mm
Sanding speed
3~20m/sec (option:1~6m/sec)
Feeding speed
10~40m/min
Sanding belt size
(W x Inner length)
430x1600mm
680x1900mm
1030x1900mm
Working table height (Plate fixed)

980mm

880mm
