Product information

Cut

Cut various materials(Wood, Resin, Aluminum etc.) by using the round saw. Achives high precision, high rigidity and high speed. PC controlled software(Option) improved production efficiency and production control.

Upper saw running saw RRM330

Upper saw running saw  RPM330

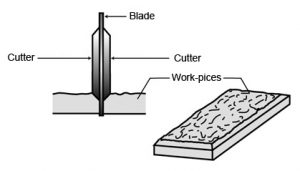

Cutting and chamfering for the siding board with high speed and high precision

< Bar code input available>

Upper saw running saw, cutting and chamfering siding board in 1 process with high speed and high precision .

Work efficiency is greatly improved.

Easy to material removal after cutting because cross cut ruler is attached.

■Use/

■Specification
Max. workable size (t x L) 40×3300mm
Front ruler travel amount 1200~3300mm
Rear ruler travel amount 0~1650mm
Main saw diameter, RPM φ355, 3700rpm
Cutting speed 5~35m/min
Ruler travel speed Max.25m/min
Working table height 830mm
