Polish（Metal・Non-metal）
Grind with grinding belt.We can suggest wet or dry types of machine according to your processing purpose.

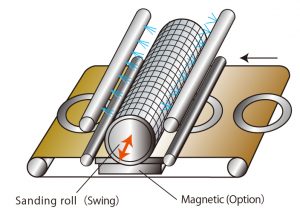

Wheel sanding machine PFD30 series(Wet type)
Wheel sanding machine PFD30 series(Wet type)
For deburring of pressed parts, surface treatment of metal parts
■Use／
| ■Specification |
PFD301(1 head)
|
PFD302(2 heads)
|
|
|---|---|---|---|
|
Workable size
|
Width(Max.) |
280mm
|
|
| Thickness |
1～6.5mm
|
||
| Min. length |
180mm(magnet chucking is option）
|
||
| Sanding wheel | RPM |
1000～3000rpm
|
|
| Size |
φ125(outer dia.)x300(L)mm |
φ125(outer dia.)x300(L)mmx2
(φ95,φ145 attachable） |
|
| Swing times |
50～250 times/min
|
||
| Swing amount |
10mm
|
||
| Sanding method |
Wet type wheel sanding (water soluble coolant) |
||
| Feeding speed motor |
2～8m/min
|
||
