Polish(Metal・Non-metal)

Grind with grinding belt.We can suggest wet or dry types of machine according to your processing purpose.

Vertical wheel grinding machine (wet type) FG15B

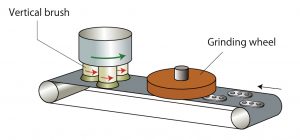

Simultaneous processing is available for 1st & 2nd de-burring by vertical grinding wheel and vertical brush.

Line processing improves production efficiency.

■Use/ Metal surface grinding

■Specification
Max. workable size (W X t) 150X15mm
Feeding speed 2~10m/min
Grinding wheel RPM 1150rpm
Brush RPM 800~2000rpm
Brush outer carrier RPM 80rpm
Grinding wheel size Outer dia. : φ457X t : 90mm
Brush dia. X brush q’ty φ100X3
Pass line FL+1175mm
